固态电解电容和液态电解电容有何不同的特点?
作者:电解电容厂家 来源:http://www.jnhongbao.com 日期:2020-10-12 11:01 浏览

  固态电解电容与普通电容即液态铝质电解电容的最大差别在于采用了不同的介电材料,液态铝电容介电材料为电解液,而固态电容的介电材料则为导电性高分子材料。所以购买什么类型的电解电容就要看实际需求,让我们一起来了解下固态电解电容和液体电解电容的特点及应用范围。

  The biggest difference between solid-state electrolytic capacitors and ordinary capacitors, i.e. liquid aluminum electrolytic capacitors, is the use of different dielectric materials. The dielectric materials of liquid aluminum capacitors are electrolyte, while the dielectric materials of solid-state capacitors are conductive polymer materials. So what type of electrolytic capacitor to buy depends on the actual demand, let's understand the characteristics and application range of solid-state electrolytic capacitor and liquid electrolytic capacitor.

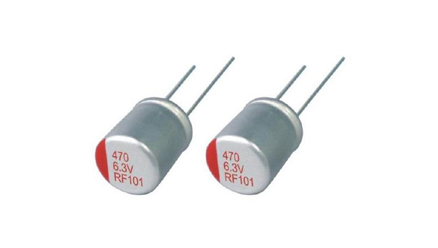

  1、固态电解电容

  Solid state electrolytic capacitor

固态电解电容

  外观:外壳为铝质金属,上头印有规格,多半无防爆线。

  Appearance: the shell is made of aluminum metal with specifications printed on the top, most of which have no explosion-proof wire.

  体积:相对小

  Volume: relatively small

  阻抗:相对小

  Impedance: relatively small

  介电材料:导电性高分子材料

  Dielectric materials: conductive polymer materials

  价钱:成本高

  Price: high cost

  工作频率:适用高频

  Working frequency: suitable for high frequency

  温度特性:高低温稳定

  Temperature characteristics: high and low temperature stability

  应用范围:断路器型电力计、MDL Power logger电能记录仪、摄影机、LED广告牌、计算机、高阶服务器、IPC、主板CPU外围、LCD TV、绘图卡、游戏机、电信路由器。

  Application scope: circuit breaker type power meter, MDL power logger, camera, led billboard, computer, high-level server, IPC, main board CPU peripheral, LCD TV, drawing card, game machine, telecommunication router.

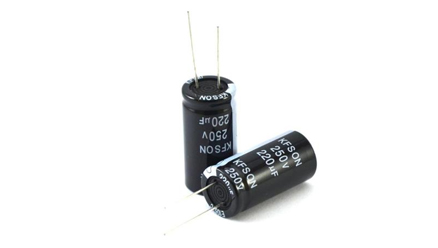

  2、液态电解电容

  Liquid electrolytic capacitor

液态电解电容

  外观:铝质外壳多覆有塑料膜,上方并有防爆线,有“K”或“+”字形的防爆开槽。

  Appearance: the aluminum shell is mostly covered with plastic film, with explosion-proof wire above, and explosion-proof slot with "K" or "+" shape.

  体积:相对大

  Volume: relatively large

  阻抗:相对大

  Impedance: relatively large

  介电材料:电解液

  Dielectric material: electrolyte

  价钱:成本低

  Price: low cost

  工作频率:适用低频

  Working frequency: suitable for low frequency

  温度特性:低温电解液凝固;高温电解液膨胀,高压爆裂

  Temperature characteristics: low temperature electrolyte solidification; high temperature electrolyte expansion, high pressure burst

  应用范围:消费性电子、工业应用、信息电子、通讯产品、汽车等领域。

  Application scope: consumer electronics, industrial applications, information electronics, communication products, automotive and other fields.

  如需购买电解电容,一定要根据企业所从事的行业以及产品特点进行选购,山东红宝电子作为专业从事电容行业的引领者已经为多家知名大型企业提供长期且稳定的电容货源,性价比高。

  If you want to buy electrolytic capacitors, you must choose according to the industry and product characteristics of the enterprise. Shandong Hongbao electronics, as a leader in the capacitor industry, has provided a long-term and stable source of capacitor goods for many well-known large enterprises, with high cost performance.
