搬运过程中如何避免贴片电容损坏
作者:红宝电容 来源:http://www.jnhongbao.com 日期:2020-09-26 10:46 浏览
  我们都知道贴片电容属于多层片式陶瓷电容,而陶瓷是很脆弱且容易损坏的,所以贴片电容在运输过程中要特别注意,避免出现裂纹、高温、弯曲折断等原因使贴片电容损坏。

  We all know that chip capacitors belong to multilayer chip ceramic capacitors, and ceramics are very fragile and easy to be damaged. Therefore, special attention should be paid to prevent chip capacitors from being damaged due to cracks, high temperature, bending and breaking during transportation.

  运输和使用过程中需要注意贴片电容的陶瓷体是一种脆性材料。如果 PCB 板受到弯曲时,它会受到一定的机械应力冲击。在搬运使用过程中应注意以下方面:

  In the process of transportation and use, the ceramic body of SMC is a kind of brittle material. If the PCB is bent, it will be impacted by certain mechanical stress. Attention should be paid to the following aspects in the process of handling and using:

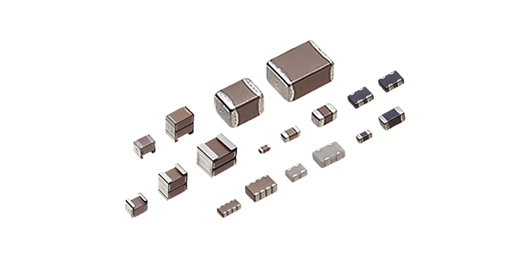

贴片电容

  1、贴装完毕的电路板在运输过程中板与板间隔之间采用软性防护垫进行防护(海绵、珍珠棉、纸板等);

  1. Soft protective pads (sponge, pearl cotton, paperboard, etc.) are used between boards for protection during transportation;

  2、电路板在使用过程中要做到轻拿轻放,避免粗暴作业产生碰撞;

  2. The circuit board should be handled with care to avoid collision during rough operation;

  3、电路板应在软性防护垫上放置或采用插件式放置,不要随意叠加放置;

  3. The circuit board should be placed on the soft protective pad or plug-in type, and should not be stacked randomly;

  4、选择合适的分板方式,防止 PCB 板不受控变形。

  4. Select the appropriate way to separate the PCB board to prevent uncontrolled deformation.

  考虑到贴片电容的材质属于高密度、硬质、易碎和研磨的,所以一定要注意正确的保存贴片电容,保证其能够正常。

  Considering that the material of SMC is high density, hard, fragile and ground, we must pay attention to the correct storage of SMC to ensure its normal operation.


×
